The RJ45 connector is an Ethernet networking standard. Its name refers
to the registered jack, which was defined in the Universal Service Ordering
Code (USOC) system of the Bell System. It was incorporated into Title 47 of the
Code of Federal Regulations as a standard. The connector is not physically
connected to the computer. Instead, it connects to the computer via wires,
cables, or optical fibre. In this article, we will discuss its uses.
RJ45 connector

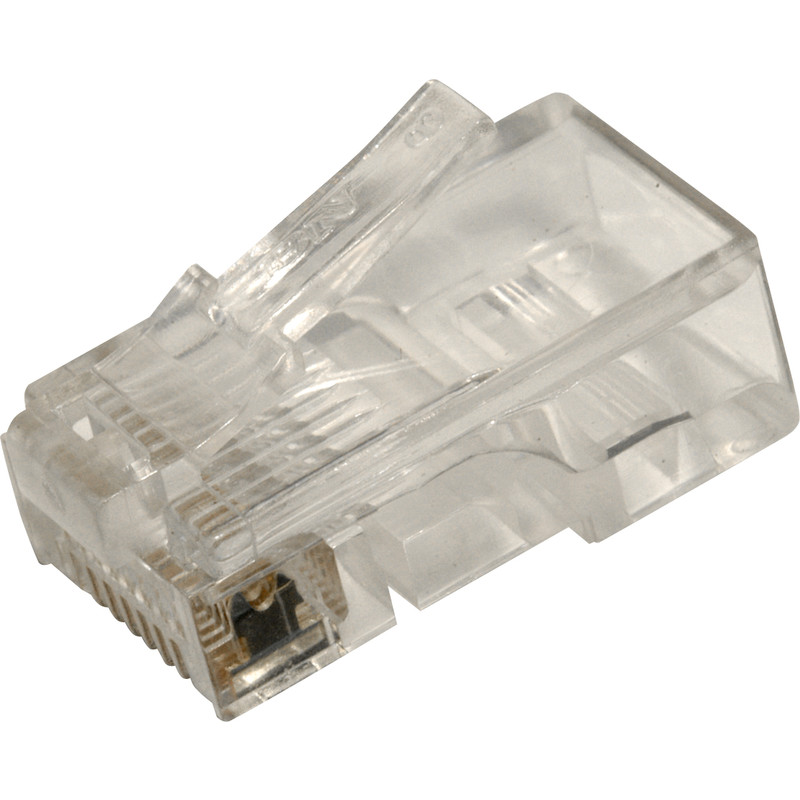

An RJ45 Connector is an Ethernet networking connector that uses eight
pins to connect 8 wire pieces. It comes with a lock port to secure the
connector to the port, making it difficult to unplug the Ethernet cable
accidentally. This type of connector is commonly used in networking, serial
port console ports, and patch cables. This connector was originally developed
by Bell Labs laboratories and was first used for a phone line's Universal
Service Ordering Code.
To choose the proper RJ45 connector, know which type of cable you're
connecting. Most connectors look similar from the outside, but their internal
constructions vary, so you'll need to know how thick the cable jacket is and
how thick the copper conductor is. For example, a Cat6 cable is thicker than a
standard Cat4 cable and therefore requires a larger RJ45 plug with a larger
outer diameter.
GG45 connector
The GG45 is a standard two-in-one connector with a 360deg shielding.
This means it is backwards compatible with existing Category 5 and 6 cabling.
The GG45 is also suitable for work areas since it can be used with standard
Category 7 patch cords. However, for those who are unsure about its use, here
are some benefits of this connector. The following are some of the benefits of
this connector.
The Nexans LAN mark GG45 is a screened RJ45 connector. It is specified
for 2000 MHz and features 12 contacts, including four for a higher-speed
transmission. It also has four additional contacts for RJ45 compatibility. The
GG45 connector is available in different colours, so you can find one that
matches your network or other equipment. Its 360-degree shielding is a
significant benefit.
8P8C RJ45 connector
An 8P8C RJ45 connector is designed to terminate solid cat6 network
cable. The connector features metal teeth for holding the wire in place. It is
convenient for custom-length patch cables made from bulk cable. The connector's
pinout is TIA/EIA 568, making it a versatile choice for a variety of
applications. In addition, it can be used for CAT6 data networks.
The 8P8C modular connector is standardized according to the IEC 60603-7
standard. It is characterized by different categories, including signalling and
telecommunications. Its physical dimensions are defined by the ANSI/TIA-1096-A
and ISO-8877 standards. Its pinout is typically T568A. It is compatible with
telephone and Ethernet devices. It has a modular pinout of eight and can be
used with various wire types, including coaxial cable.
GigaGate45 connector
The GigaGate45 connector is backwards compatible with other Ethernet
ports, including Cat 5 and Cat 6. Unlike cat 6 and cat 7 cables, which offer
lower speeds and shorter distances, the GigaGate45 is backwards compatible with
all of the other standard Ethernet ports. It uses a modified GG45 connector
that is backwards compatible with the original RJ45 connector. Here are some
benefits of the GigaGate45 connector.
A GigaGate45 cable has four twisted-pair copper strands with shielding.
It supports transmissions up to Gigabit Ethernet over 100 meters. It is backwards-compatible
with standard RJ-45 Ethernet ports. GigaGate45 cables support up to ten
gigabits per second and are compatible with Cat7 and Cat6a cables. GigaGate45
connectors are backwards-compatible with both RJ-45 and Cat7 Ethernet ports.
The 8P8C RG45 connector
The 8P8C rg45 connector is a modular plug with eight contact positions. It
plugs into your router, computer, or TV. Its clear plastic shell makes it
virtually transparent. The connector's copper pins act as electromagnetic
impulse conductors and are coated with gold to prevent rusting. This type of
connector is often used in networking applications. It has a high transmission
speed and can handle 8 wires at a time.
An 8P8C rg45 connector can be plugged into an RJ45 receptacle, which is
why it is so often mistakenly called an "RJ45" by people who are not
familiar with networking technology. Many people in the computer networking
industry mistakenly refer to unkeyed 8P8C connectors as "RJ45s," but
most industry jargon refers to the receptacle as a "modular"
connector.
